Dear Valued Customer,

Thank you for your purchase of the Wax Racing Reloader Pump System. To ensure proper installation, please follow the steps outlined below:

1. Preparation:

• Remove the jet pump from your ski.
• Detach the reduction nozzle and the standard pump cone from the jet pump.
• Extract the impeller from your jet unit.

2. Installing the Reloader System:

• Attach the rear half of the reloader system (Part A) over the pump vanes, ensuring proper alignment. Seal the connection with silicone to the OEM center bearing section of the jet unit.
• Secure the front section of the reloader nozzle (Part B) to the rear section using M4 x 50mm bolts. Ensure alignment and secure the bolts with Loctite.
• Slide the O-ring onto Part C, lubricate it with grease, and insert it into the back of the OEM jet unit. Align the screw holes with Part A and the jet unit.
• Tighten three of the four provided M6 x 16 Allen head bolts and secure them with Loctite to prevent loosening.

3. Final Steps:

• Your pump reloader system is now successfully installed.

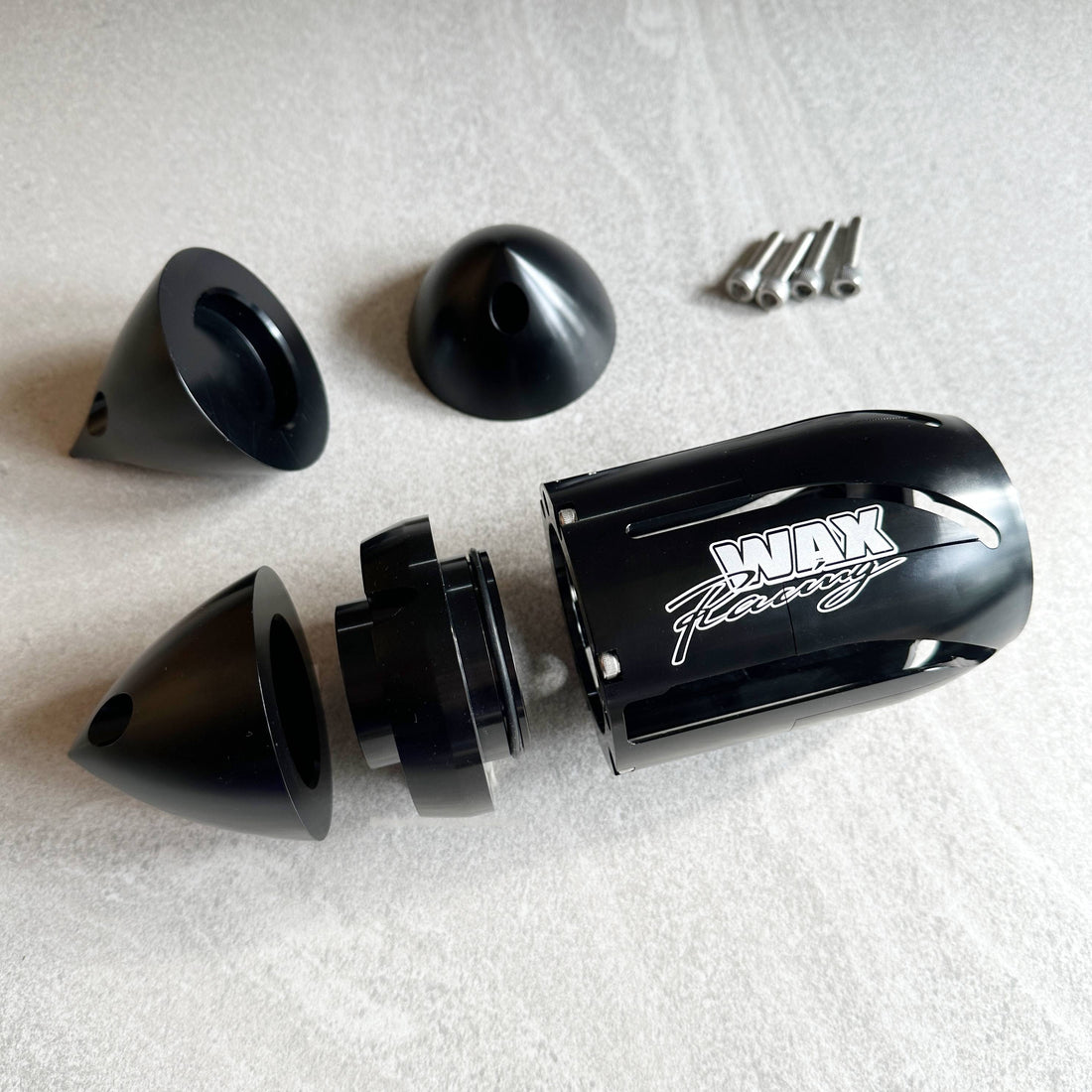

• Utilize the three different exit cones provided with the reloader to adjust your pump load for optimal performance.
• Reinstall the impeller and jet unit in the reverse order of removal.

If you have any further questions or need assistance, please don't hesitate to contact us. We appreciate your business and thank you for choosing our product.

Best regards,

The Wax Racing Team
